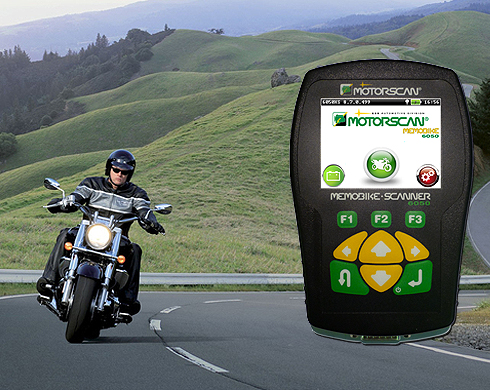

MOTORSCAN PRO – PROFESSIONAL SCANNER FOR MOTORCYCLES
Model: MS6050
|
 |
 |
● Product code: MT0004
● Origin:
● Availability: In stock
● Rate:
(Only support for Windows) |
|
|
|
|
● INTRODUCTION |
|
|
- MOTORSCAN Pro is a high-tech device that allows making an advanced diagnosis of motorcycles, scooters and ATVs, belonging to the most important manufacturers in the world. It allows the operator is able to identify fault, verify the operation and modify some parameters of the electronic control modules managing injection, ignition, immobilizer, dashboard, ABS and other proprietary systems installed on new generation vehicles.
- The diagnostics-tool works fast, easy to use and works accurately
- The workshop only needs this tool for many different factories.
|
|
|
|
● FUNCTION |
|
|
Main function:
- Reading and erasing stored trouble codes in ECU
- Reset ECU
- Display ECU data (hardware and software version, date of programming, etc.)
- Display live data of parameters and status (engine speed, air temperature, TPS angle, battery voltage, injection time, etc.)
- Active actuators (injectors, coils, lights, lamps, etc.)
- Adjust parameters (level of CO at idle, engine idle speed, TPS sensor angle, alarm sensitivity, reset of self-adaptive parameters, etc.)
- Service lights reset
- Key and/or FOB encoding
- Temporary unlock of the immobilizer
- Configuration of the immobilizer/alarm system
- Data logger of injection parameters
Covered systems:
- Injection system (display codes, blinking codes, serial)
- Immobilizer system
- Ignition system
- Anti-lock braking system (ABS)
- Service
- Body computer
- Transmission system
- Electronic Power Steering (EPS) systems
- Electronic Power Throttle (EPT) system
- Handlebar commands
- Radio system
- Tire pressure monitoring (RDC) system
- Suspension system
- Parking system
- Electric Traction system
|
|
|
|
● ADDRESS & APPLICATION RANGE |
|
|
 |
|
|
- Used for almost modern motorcycles in the world from 1994 to now such as:
ADIVA, APRILLIA, ARCTIC CAT, BENELLI, BIMOTA, BMW, BRP CAN-AM,
BUELL, CAGIVA, DAELIM, DERBI, DUCATI, GARELLI, GAS GAS, GILERA, HARLEY-DAVIDSON, HONDA, HYOSUNG, KAWASAKI, KTM, KVN MOTOR, KYMCO, LAVERDA, MALAGUTI, MONDIAL, MOTO GUZZI, MOTO MORINI, MV AGUSTA, MZ, PEUGEOT, PIAGGIO, POLARIS, SHERCO, SUZUKI, SYM, TRIUMPH, VESPA, VOXAN, YAMAHA
- Using Objects:
+ Motorcycle workshops that are looking for an affordable and universal diagnostics tool.
+ Motorcycle and motorbike maintenance shops, that works with modern motorbikes.
+ Motorcycle workshops that has trouble diagnosing vehicles with their existing diagnostics equipment.
+ Motorcycle workshops that want to have a maximum of vehicle and software coverage for their budget.
|
|
|
| |
FUNCTION TABLE FOR MANUFACTURER |
| No. |
MANUFATURER |
FUNCTION |
No. |
MANUFATURER |
FUNCTION |
| 1 |
ADIVA |
- Injection
- Immobilizer/Alarm
- Data Logger |
21 |
KVN
MOTOR |
- Injection
- Data Logger |
| 2 |
APRILLIA |
- Injection
- Data Logger |
22 |
KYMCO |
- Injection
- Data Logger |
| 3 |
ARCTIC
CAT |
- Injection
- Data Logger |
23 |
LAVERDA |
- Injection
- Data Logger |
| 4 |
BENELLI |
- Injection
- Data Logger |
24 |
MALAGUTI |
- Ignition
- Service
- Data Logger |
| 5 |
BIMOTA |
- Injection
- Immobilizer/Alarm
- Data Logger |
25 |
MONDIAL |
-Injection Blinking Codes |
| 6 |
BMW |
- Injection
- Immobilizer/Alarm
- Service
- ABS
- Dasboard
- Body Computer
- RDC
- Data Logger
- DTC Global Search |
26 |
MOTOGUZZI |
- Injection
- Immobilizer/Alarm
- ABS
- Data Logger |
| 7 |
BRP
CAN-AM |
- Injection
- Immobilizer/Alarm
- Service
- Dashboard
- Data Logger
- DTC Global Search |
27 |
MOTO
MORINI |
- Injection
- Service
- Data Logger |
| 8 |
BUELL |
- Injection
- Data Logger |
28 |
MV
AGUSTA |
- Injection
- Data Logger |
| 9 |
CAGIVA |
- Injection
- Data Logger |
29 |
MZ |
- Injection
- Data Logger |
| 10 |
DAELIM |
- Injection
Blinking code |
30 |
PEUGEOT |
- Injection
- Immobilizer/Alarm
- Data Logger |
| 11 |
DERBI |
- Ignition
- Injection
- Immobilizer/Alarm
- Data logger |
31 |
PIAGGIO |
- Injection
- Immobilizer/Alarm
- Ignition
- Parking
- ABS
- Electric Traction
- Service
- Data Logger |
| 12 |
DUCATI |
- Injection
- Service
- Body Computer
- Dasboard
- Immobilizer/Alarm
- Suspension
- Data Logger |
32 |
POLARIS |
- Injection
- EPS
- DTC Global Search
- Data Logger |
| 13 |
GARELLI |
- Injection
- Data Logger |
33 |
SHERCO |
- Injection
- Data Logger |
| 14 |
GAS
GAS |
- Injection
- Data Logger |
34 |
SUZUKI |
- Injection
- ABS
- Transmission
- EPS
- DTC Search Global
- Data Logger |
| 15 |
GILERA |
- Injection
- Immobilizer/Alarm
- Ignition
- Parking
- Service
- Data Logger |
35 |
SYM |
- Injection
- Data Logger |
| 16 |
HARLAY
DAVISON |
- Injection
- Immobilizer/Alarm
- Dashboard
- Radio
- ABS
- Data Logger
- DTC Global Search |
36 |
TRIUMPH |
- Injection
- ABS
- Data Logger |
| 17 |
HONDA |
- Injection
- Immobilizer/Alarm
- ABS
- Service
- Injection Blinking Codes
- Data Logger |
37 |
VESPA |
- Injection
- Immobilizer/Alarm
- ABS
- Ignition
- Data Logger |
| 18 |
HYOSUNG |
Injection |
38 |
VOXAN |
- Injection
- Data Logger |
| 19 |
KAWASAKI |
- Injection
- Injection Blinking Codes
- Immobilizer/Alarm
- ABS
- RDC
- Data Logger |
39 |
YAMAHA |
- Injection
- Ignition
- Immobilizer/Alarm
- Service
- Data Logger |
| 20 |
KTM |
- Injection
- EPT
- ABS
- Data Logger
- DTC Global Search |
|
|
|
|
|
Click here to view detail of function table
>>
|
|
|
|
● TECHNICAL FEATURES |
|
|
- Dimension 175x112x36 mm
- Power supply 8 – 16 Volt
- Display Graphic LCD display (320x240 pixels)
- Keyboard 9 keys
- Diagnostic interface Proprietary DB25 for the diagnostic cable connection
- Serial Interface USB for the software update and the PC connection
- Internal memory: 32 MB RAM memory |
|
|
|
● EQUIPMENT COMPONENT |
|
|
|
MAIN ACCESSORIES |
| PART
NUMBER |
DESCRIPTION |
PICTURE |
| SL5950ST |
Handheld tool |
 |
| 13CDISTR |
CD with:
- Operating instruction
- Vehicle list |
 |
| 2303ASW18W |
AC/DC power
supply |
 |
| 33CR-EU |
Power cord
|
 |
| SL010474 |
Master Cable |
 |
| SL010051 |
Battery power
cable |
 |
| SL010342 |
“Universal”
Cable
Applications: Aprilia2, BMW, Cagiva2, Harley-Davidson3,
Honda, Kawasaki, Malaguti, Mondial, Suzuki, Yamaha |
 |
|
OPTIONAL CABLES |
| SL010478 |
BMW Slave
Cable |
 |
| SL010480 |
Harley-Davidson Slave Cable |
 |
| SL010481 |
OBDII Slave
Cable
Applications: Triumph |
 |
| SL010499 |
Packard Slave
Cable
Applications: Aprilia1, Bimota, Cagiva1, Ducati, Gas
Gas, Gilera, KVN Motor, Laverda, Malaguti1, Moto Guzzi,
Moto Morini, MV Agusta, Piaggio, Sherco, Vespa, Voxan |
 |
| SL010477 |
SUZUKI /
CAGIVA Cable |
 |
| SL010458 |
KAWASAKI 4 Pin
Slave Cable |
 |
| SL010459 |
KAWASAKI 8 Pin
Slave Cable |
 |
| SL010460 |
HONDA 4 Pin
Slave Cable |
 |
| SL010461 |
HONDA 3 Pin
Slave Cable
Applications: Honda with blinking code systems |
 |
| SL010462 |
HONDA 2 Pin
Slave Cable |
 |
| SL010463 |
SUZUKI 6 Pin
Slave Cable |
 |
| SL010464 |
SUZUKI 4 Pin
Slave Cable |
 |
| SL010475 |
YAMAHA 3 Pin
Slave Cable |
 |
|
SL010476 |
CAGIVA 10 Pin Slave Cable |
 |
|
SL010483 |
APRILIA/DITECH Slave Cable
Applications: Aprilia Ditech system. |
 |
| SL010489 |
KTM Slave
Cable |
 |
| SL010490 |
APRILIA/SAGEM
Slave Cable
Applications: Aprilia Sagem system |
 |
| SL010491 |
PEUGEOT Slave
Cable |
 |
|
SL010493 |
KYMCO Slave Cable |
 |
| SL010500 |
KAWASAKI 4
Pin/2007 Slave Cable |
 |
| SL010501 |
BRP Slave
Cable |
 |
| SL010502 |
KAWASAKI REG.
INJ. Slave Cable |
 |
| SL010505 |
BENELLI 6 Pin
Slave Cable |
 |
| SL010506 |
VDO 4 Pin
Slave Cable |
 |
| SL010508 |
DUCATI CAN 4
Pin Slave Cable |
 |
| SL010509 |
KAWASAKI 6 Pin
Slave Cable |
 |
| SL010510 |
KAWASAKI MY
2010 6 Pin
Slave Cable |
 |
| SL010512 |
SYM 3 Pin
Slave Cable |
 |
| SL010516 |
POLARIS 8 Pin
Slave Cable |
 |
| SL010518 |
WALBRO SYSTEM
Slave Cable |
|
| SL010519 |
HARLEY-DAVIDSON CAN 6 Pin Slave Cable |
|
|
|
|
|
